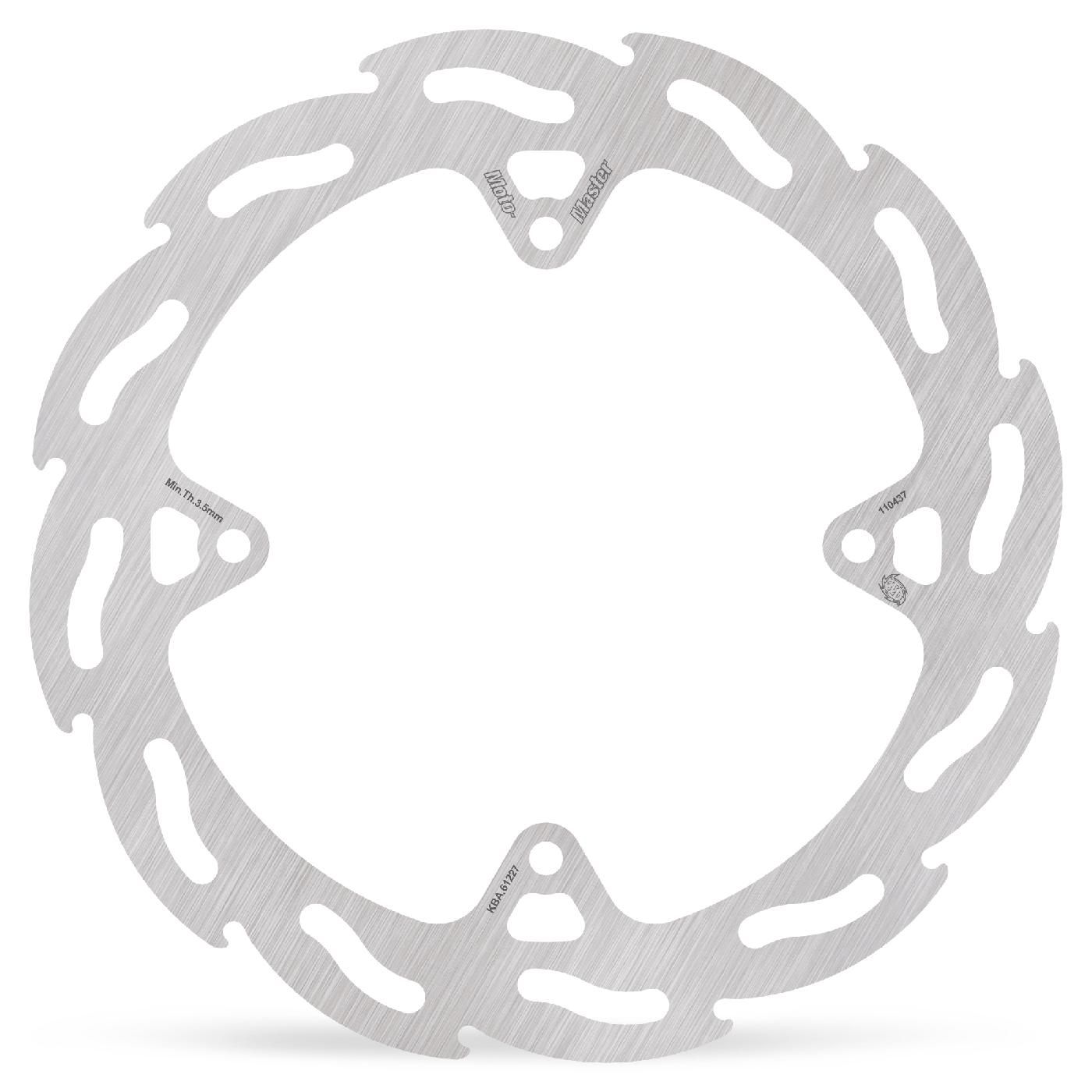

Brake Disc Specifications

Series: Flame
Type: Fixed Disc
Turning Direction: Right Side Mount
Speedometer Prepared: No

Dimensions:

• Outer Diameter: 210.0 mm
• Inner Diameter: 110.0 mm
• Thickness: 4.0 mm
• Number of Holes: 4
• Hole Diameter: 6.5 mm
• Pitch: 125.0 mm

Applications

Rear - Flame Series
Compatible with the following models:

Husqvarna

• TC 85 (17/14) (2014-2020)
• TC 85 (19/16) (2014-2020)

KTM

• 85 SX (17/14) (2011-2020)
• 85 SX (19/16) (2012-2020)
• Freeride 250 F (2018-2020)
• Freeride 250 R (2014-2017)
• Freeride 350 (2012-2017)
• Freeride E-SX E-Bike (2012-2014)
