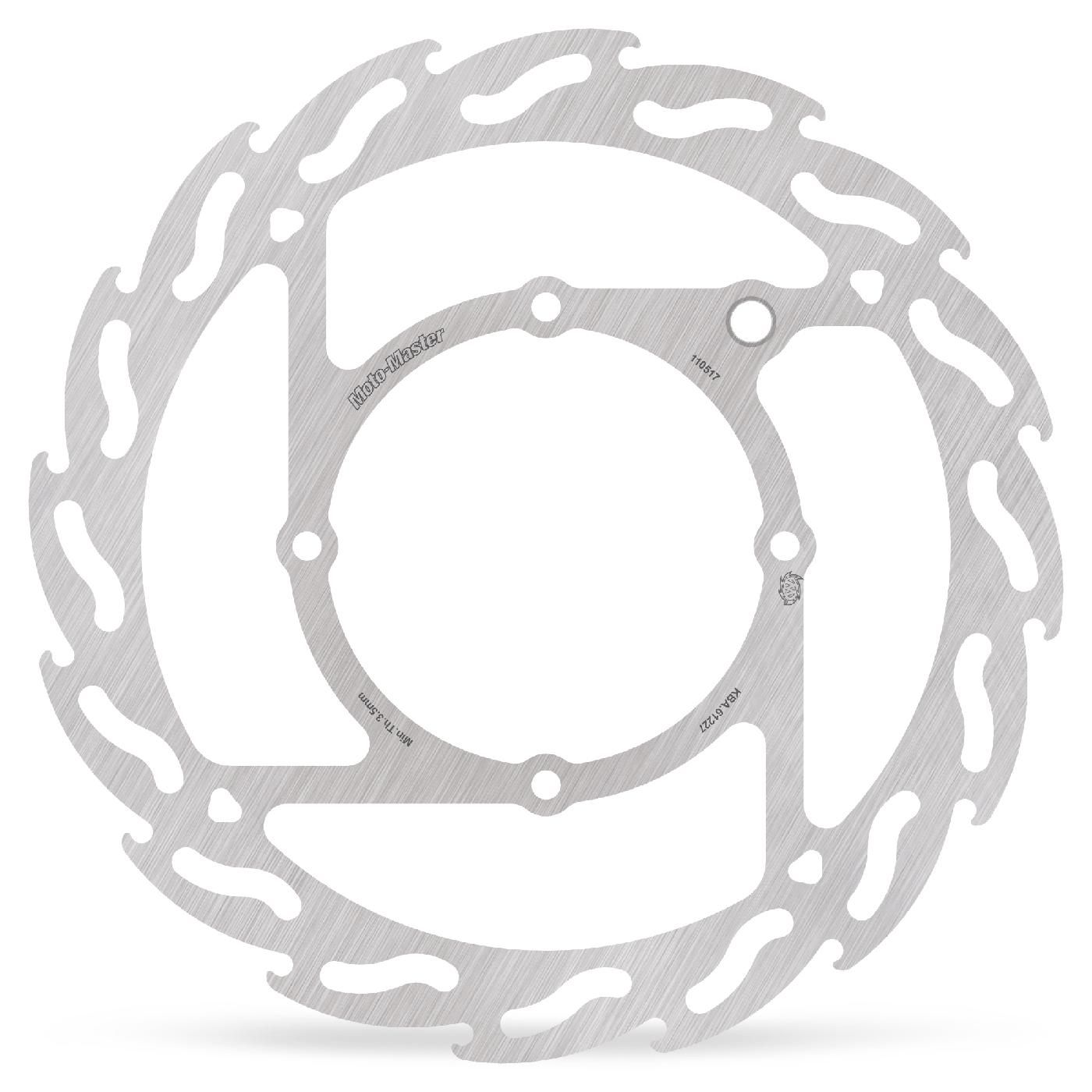

Brake Disc Specifications

Series: Flame
Type: Fixed Disc
Turning Direction: Left Side Mount
Speedometer Prepared: Yes

Dimensions:

• Outer Diameter: 240.0 mm
• Inner Diameter: 95.0 mm
• Thickness: 4.0 mm
• Number of Holes: 4
• Hole Diameter: 6.5 mm
• Pitch: 110.0 mm

Applications

Front Left - Flame Series

E-Rockit

• E-Rockit E-Bike (2013)

GasGas

• MC 85 (17/14) (2022 and up)
• MC 85 (19/16) (2021 and up)

Husqvarna

• TC 85 (17/14) (2016-2025)
• TC 85 (19/16) (2014-2025)

KTM

• 85 SX (17/14) (2016-2025)
• 85 SX (19/16) (2013-2025)
• Freeride E-SX E-Bike (2012-2014)
• Freeride E-XC E-Bike (2021-2022)
